Introduction

The Operations Central Monitoring setup collects monitoring information from across the instrument, and provides monitoring dashboards as well as an alarm-management system on top. It provides you with the following user services:

As well as the following backing services to support the setup:

  • A Prometheus database that collects monitoring information from across the instrument, exposed on http://localhost:9091,

  • A Node Exporter scraper that collects monitoring information of the host running this software stack, exposed on http://localhost:9100.

Hint

The URLs assume you’re running this software on localhost. Replace this with the hostname of the hosting system if you’re accessing this software on a server.

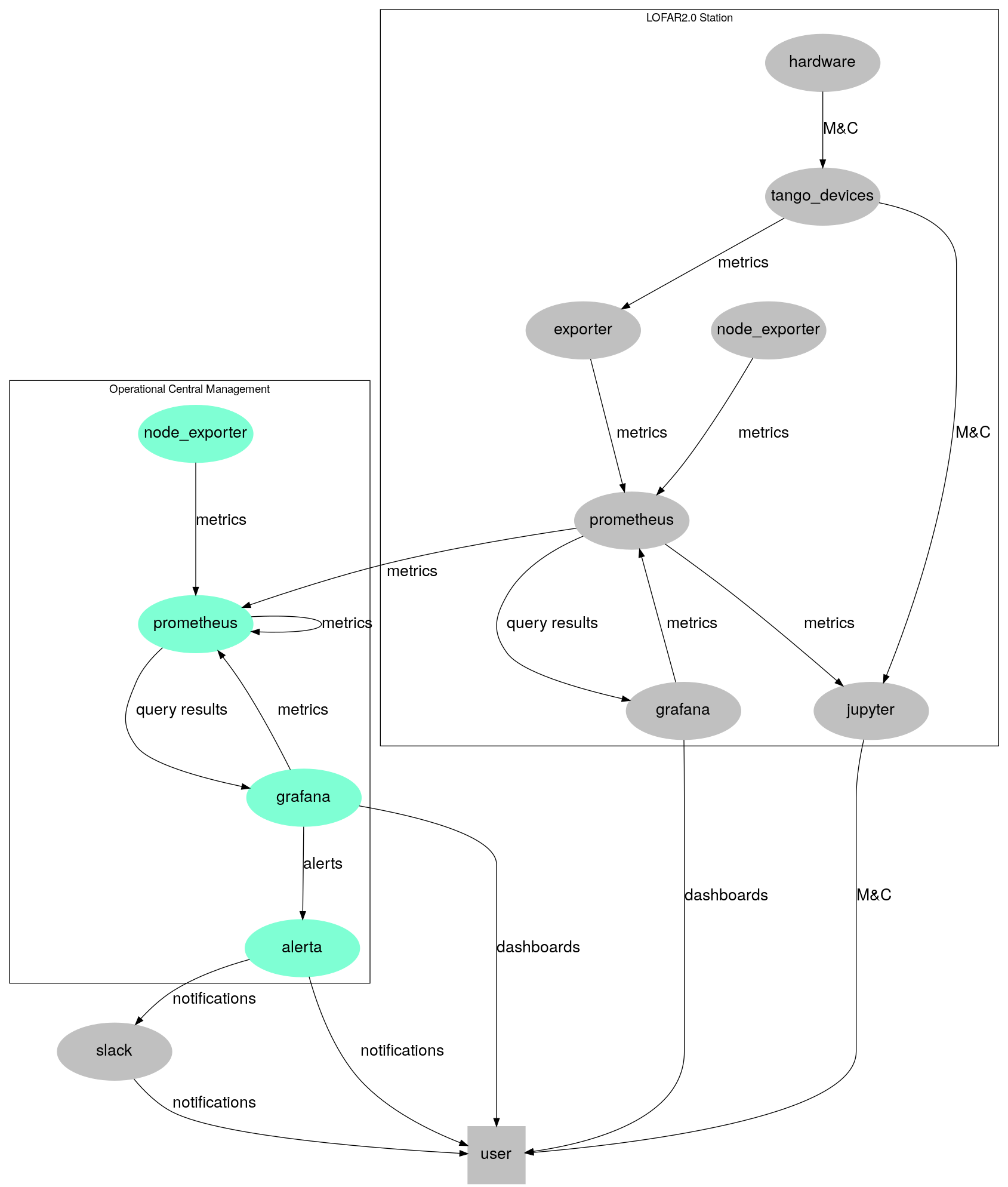

The services are connected as follows. The green components are part of this software package, the gray components are external:

digraph monitoring_setup { layout=dot; nodesep=1.2; fontname="Helvetica,Arial,sans-serif" node [fontname="Helvetica,Arial,sans-serif" fontsize="20pt" style=filled fixedsize=true] edge [fontname="Helvetica,Arial,sans-serif" fontsize="20pt"] rankdir=TB; node [shape=ellipse height=1 width=2 color=gray]; slack; node [shape=rectangle width=1 color=gray]; user; subgraph cluster_operational_central_management { color=black; label="Operational Central Management"; node [shape=ellipse height=1 width=2 color=aquamarine]; prometheus; grafana; alerta; node_exporter; prometheus -> grafana [label="query results"]; grafana -> alerta [label="alerts"]; node_exporter -> prometheus [label="metrics"]; grafana -> prometheus [label="metrics"]; prometheus -> prometheus [label="metrics"]; } subgraph cluster_station { label="LOFAR2.0 Station"; node [shape=ellipse height=1 width=2 color=gray]; station_prometheus [label="prometheus"]; station_grafana [label="grafana"] station_node_exporter [label="node_exporter"] hardware tango_devices; exporter; jupyter; station_node_exporter -> station_prometheus [label="metrics"]; station_prometheus -> station_grafana [label="query results"]; station_grafana -> station_prometheus [label="metrics"]; hardware -> tango_devices [label="M&C"]; tango_devices -> exporter [label="metrics"]; exporter -> station_prometheus [label="metrics"]; station_prometheus -> jupyter [label="metrics"]; tango_devices -> jupyter [label="M&C"] } station_prometheus -> prometheus [label="metrics" minlen=1]; station_grafana -> user [label="dashboards"] jupyter -> user [label="M&C"]; alerta -> slack [label="notifications"]; grafana -> user [label="dashboards"]; alerta -> user [label="notifications"]; slack -> user [label="notifications"]; }
